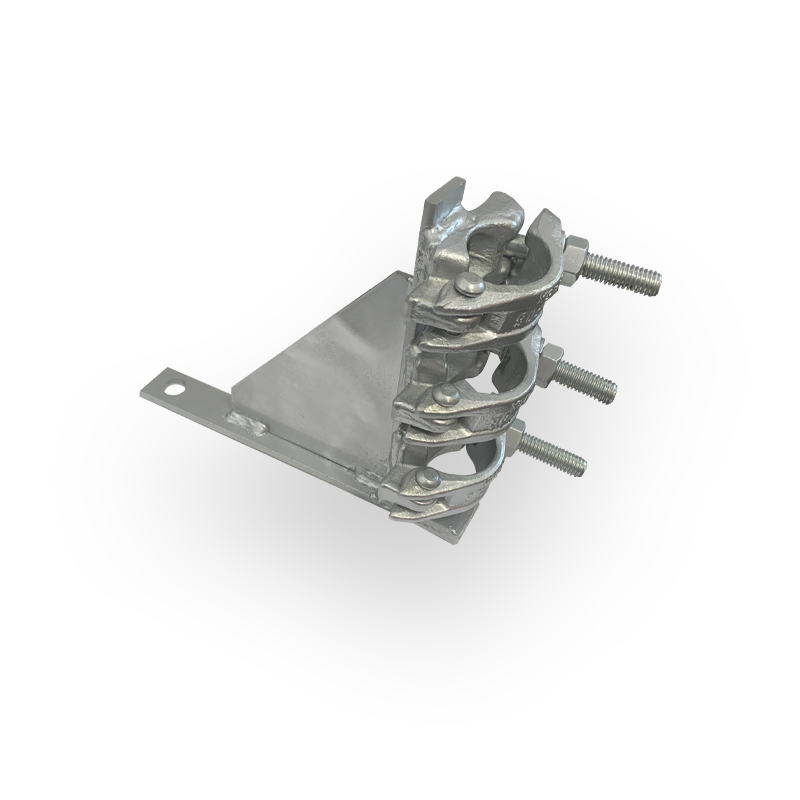

Twinfix Triple Fit Bracket – SCB14A
£26.50 (Excluding VAT)
Product Designation :
SCB14A Scaffold Bracket
Type :
Scaffold Restraint Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Load Class (TG20) :
Medium to Heavy Duty
Technical Information
A SCB14A has two 14mm diameter fixing holes. A medium to heavy duty scaffold restraint bracket used for punching scaffolding tubes horizontally or vertically from a solid base material. Made from zinc plated mild steel and fitted with two drop forged class A fittings.
Load Data
Please contact us for further information on maximum Tensile Load Data (kN).
Quality Assurance
The drop forged fitting has been manufactured and tested according to EN74. It has been accepted as Class A for behaviour under load. The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
