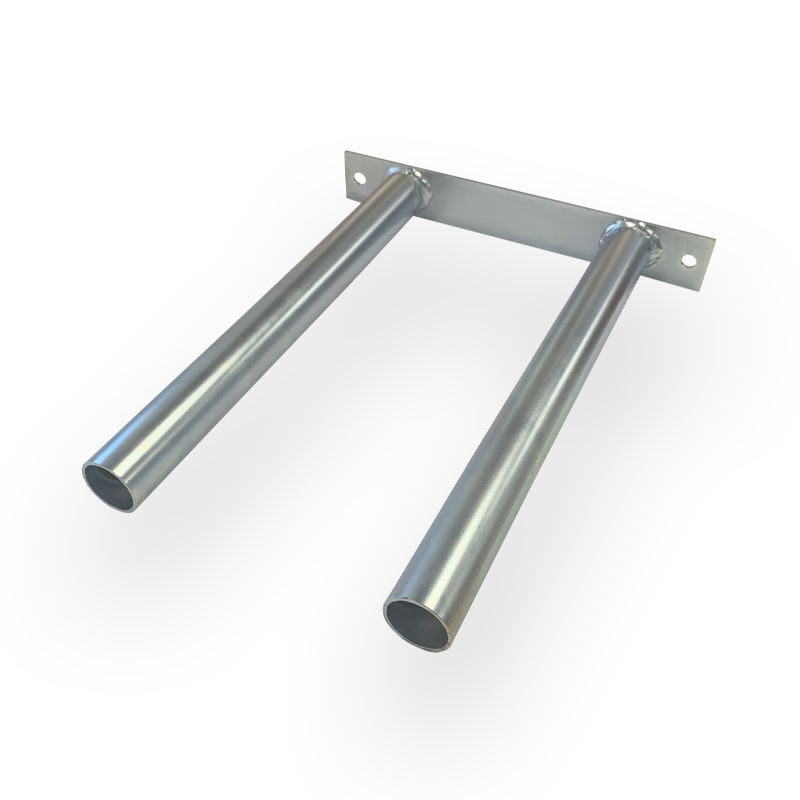

Twin Tube Tie 500mm STD with 2x14mm holes – SCB43
£30.00 (Excluding VAT)
Product Designation :
SCB43 Twin Tube Tie
Type :
Scaffold Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Load Class (TG20) :
Light to Heavy Duty (substrate dependant)
Technical Information
A “cast-off” or “t-off” bracket used for the construction of hand rails and/ or similar tube assemblies. Comprises of an extra-thick, extra-long back plate drilled with two 14.5 mm holes at 345mm centres and fitted with twin tubes 500mm long welded to its face. The outside span diameter of the tubes is also 300mm. Normally used for Concrete and Masonry connections in conjunction with 12mm ADI “CS Bolts”. Can also be fixed with conventional nylon plug & coach screw, with threaded studs or sockets set in resin or with bars or bolts, nuts washers etc passed right through the structure.
Load Capability
Please contact us for further information on Load Data (kN).
Horizontal Loads (bending moments)
Please contact us for further information on horizontal loads/bending moments (kN).
Quality Assurance
The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
You may also like…
-
Box (50) Rimless Nylon Plugs 14X75 – NP14075
£7.50 Add to basket -
Hex Head Concrete Screw Bolts – CSB
£19.00 – £71.25 Select options This product has multiple variants. The options may be chosen on the product page -
Hex Head Coach Screws (DIN 571) BZP – HHCSZ
£5.00 – £20.00 Select options This product has multiple variants. The options may be chosen on the product page -
SDS+ Hammer Bit – SDSP
£1.75 – £14.06 Select options This product has multiple variants. The options may be chosen on the product page -
ETA Approved Hex Head Concrete Screw Bolts – CSBCE
£38.00 – £99.00 Select options This product has multiple variants. The options may be chosen on the product page
Related products
-
Twin Tube Tie 300mm STD with 2x14mm holes – SCB36
£22.30 Add to basket -
Twin Tube Tie 375mm XL BACKPLATE with 4x14mm holes – SCB35
£65.00 Add to basket -

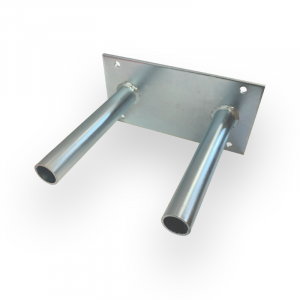

Twin Tube Tie 320mm XL BACKPLATE with 4x14mm holes – SCB33
