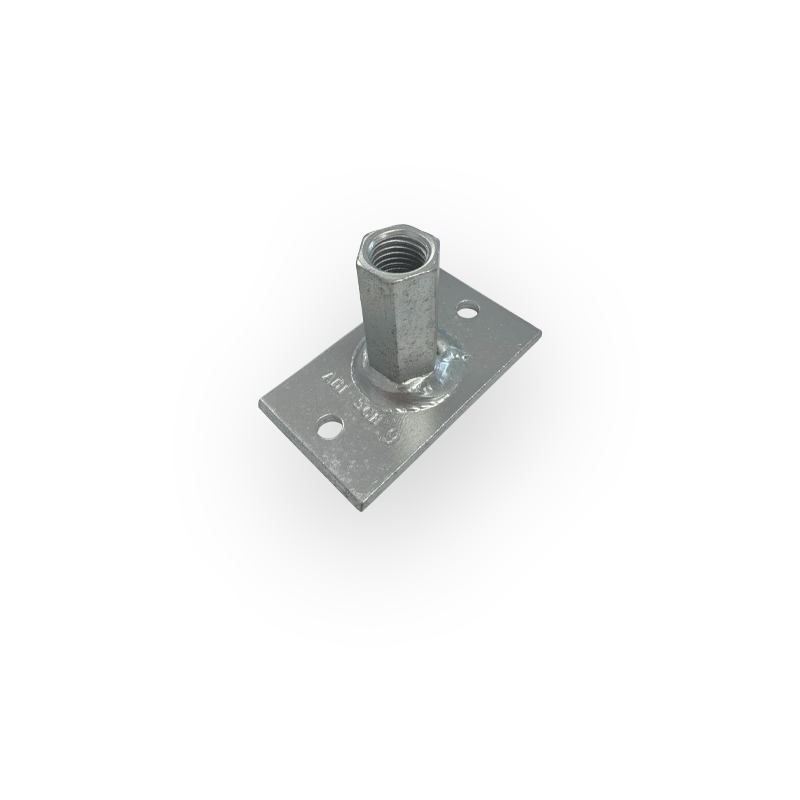

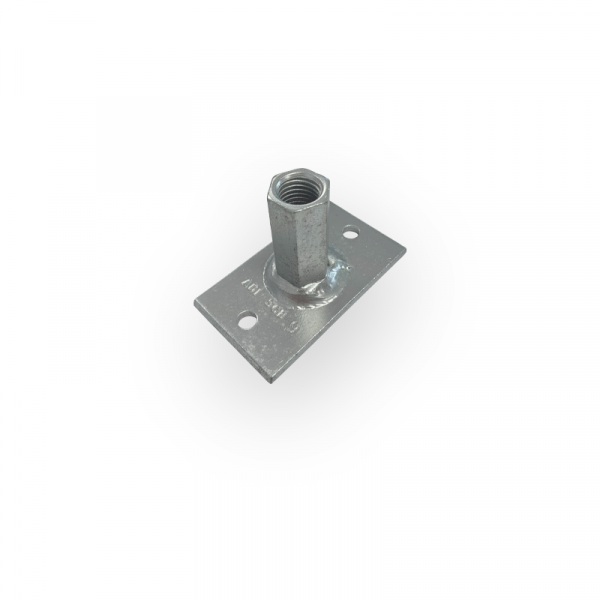

Twin 8mm Hole Bracket M16 – SCB09
£4.80 (Excluding VAT)
Product Designation :
SCB09 Twin 8mm Hole Bracket
Type :
M16 Scaffold Adaptor Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Load Class (TG20) :
Light or Standard Duty, depending on fixings & structure
Technical Information
A bracket used for M16 ring bolt connections to Concrete, Masonry, Timber or Steel. Drilled with two 8mm holes at 70mm centres, they can be fixed with 6mm Concrete Screw Bolts, nylon plug & coach screw, self-drill screws, with threaded studs or sockets set in resin, with bars or bolts, nuts, washers etc passed right through the structure.
Load Data
Please contact us for further information on maximum Tensile Load Data (kN).
Quality Assurance
The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
You may also like…
-
M16 Scaffold Ring Bolt – SCR16
£4.50 Add to basket -
External Hook Coupler – SCB03
£5.89 Add to basket -
Internal Hook Coupler – SCB02
£5.89 Add to basket -
Bag (100) Light Section Screw with G16 Washers – DSLS
£7.20 – £20.00 Select options This product has multiple variants. The options may be chosen on the product page -
Hex Head Concrete Screw Bolts – CSB
£19.00 – £71.25 Select options This product has multiple variants. The options may be chosen on the product page -
M16 Collared Eyebolt 20mm ID BS4278 BZP – EBM16ZS
£5.70 Add to basket -
SDS+ Hammer Bit – SDSP
£1.75 – £14.06 Select options This product has multiple variants. The options may be chosen on the product page -

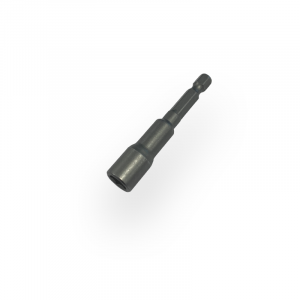

5/16″ AF Hex Magnetic Nut Driver – SDB516HEX
£5.10 Add to basket -

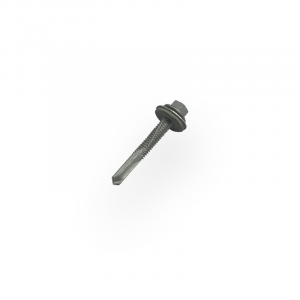

Bag (100) Heavy Section Drill Screw with G16 Washer – DSHS
