Twin 14mm Hole XL Bracket M16 – SCB10
£7.30 (Excluding VAT)
Product Designation :

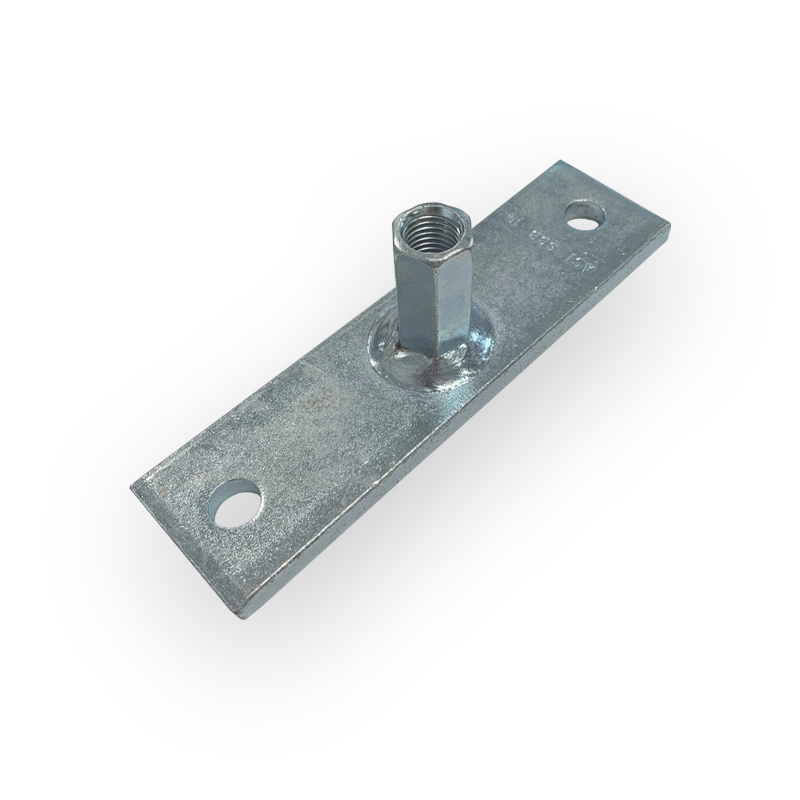

SCB10 Twin 14.0mm Hole Bracket (XL)
Type :
M16 Scaffold Adaptor Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Load Class (TG20) :
Light or Standard Duty, depending on fixings & structure
Technical Information
An extra thick, extra long (XL) two-hole bracket used for Concrete and Masonry connections in conjunction with 12mm Concrete Screw Bolts. Can also be fixed with conventional nylon plug & coach screw, with threaded studs or sockets set in resin or with bars or bolts, nuts washers etc passed right through the structure. Designed with hole centres of 150mm to spread the load over three courses of brickwork or to align with mortar joints.
Load Data
Please contact us for further information on maximum Tensile Load Data (kN).
Quality Assurance
The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
