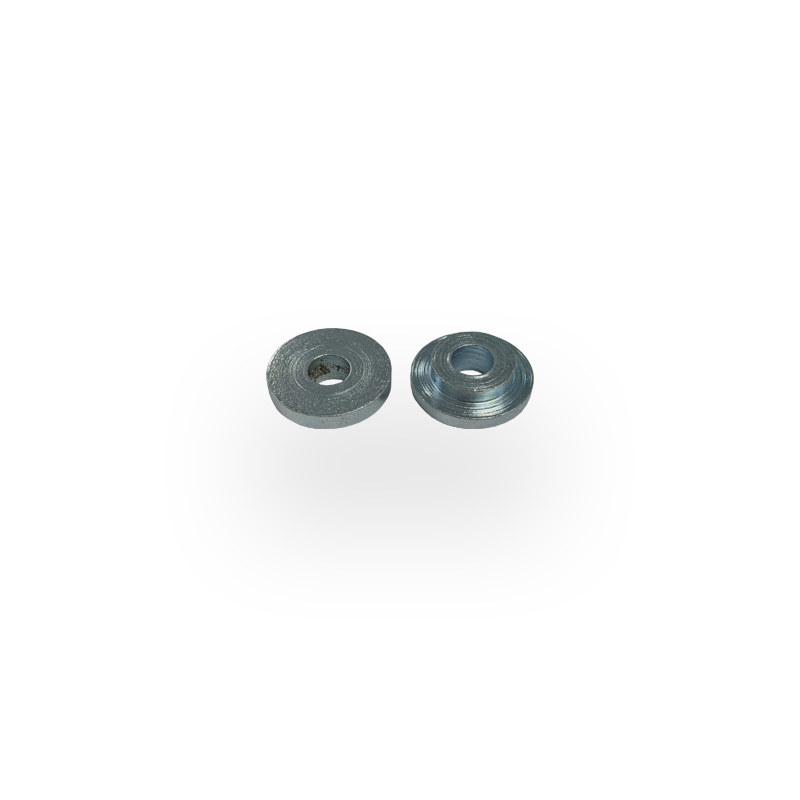

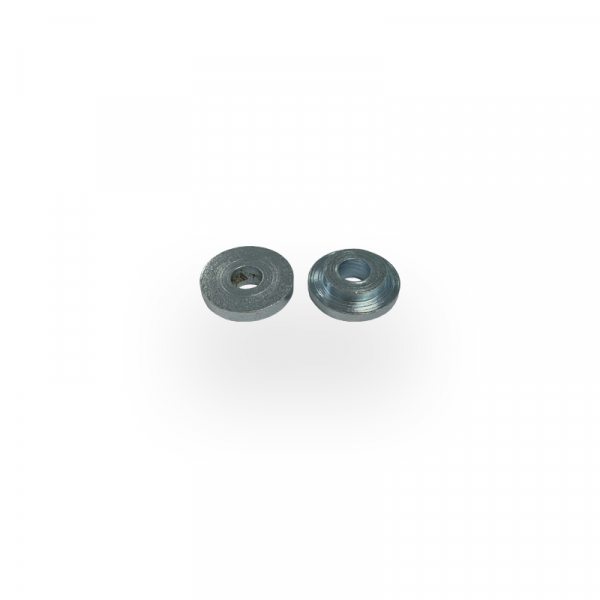

Socket Button Adaptor (Reduce 14mm hole to 7mm) – SCBBA0714

Technical Information
The adaptor acts in the same way that washer would when using fixings that do not suit the holes in a particular given bracket. Where the Socket Button Adaptor excels compared to standard washers is that it is designed to sit inside the original brackets fixing hole, which prevents any slippage/movement when installing smaller diameter screws, without compromising the load bearing capability of the screw itself.

• Reduces 14mm holes down to 7mm
• Ideal for installation of Self Drill Screws or Gash Point Screws when installing brackets into steel/wooden structures.
• Reusable

Dimensions
Overall Diameter – 20mm
Internal Diameter – 13.5mm
Fixing Hole Diameter – 7mm
Overall thickness – 6mm*

* 3mm extends into fixing hole, 3mm protrudes above bracket surface.
