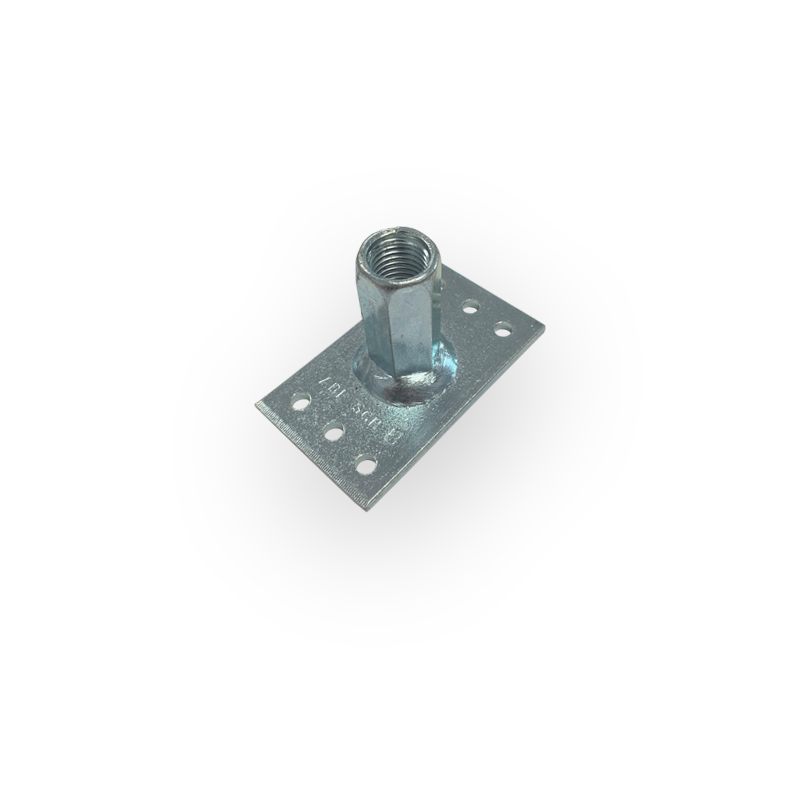

Six 6mm Hole Bracket M16 – SCB08
£4.80 (Excluding VAT)
Product Designation :
SCB08 Six 6mm Hole Bracket
Type :
M16 Scaffold Adaptor Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Load Class (TG20) :
Light or Standard Duty, depending on fixings & structure
Technical Information
A bracket used for M16 ring bolt connections to Timber or Steel. With six 6.0mm holes at 70mm centres, they can be fixed with chipboard screws, woodscrews, coach screws, self-drill screws or even riveted or bolted directly to the structure.
Load Data
Please contact us for further information on maximum Tensile Load Data (kN).
Quality Assurance
The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
