Single Tube Tie 300mm with 6x6mm holes – SCB34C
£17.00 (Excluding VAT)
Product Designation :
SCB34C Single Tube Tie
Type :
Scaffold Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Load Class (TG20) :
Light to Heavy Duty (substrate dependant)
Available 7-10 days from order
Technical Information

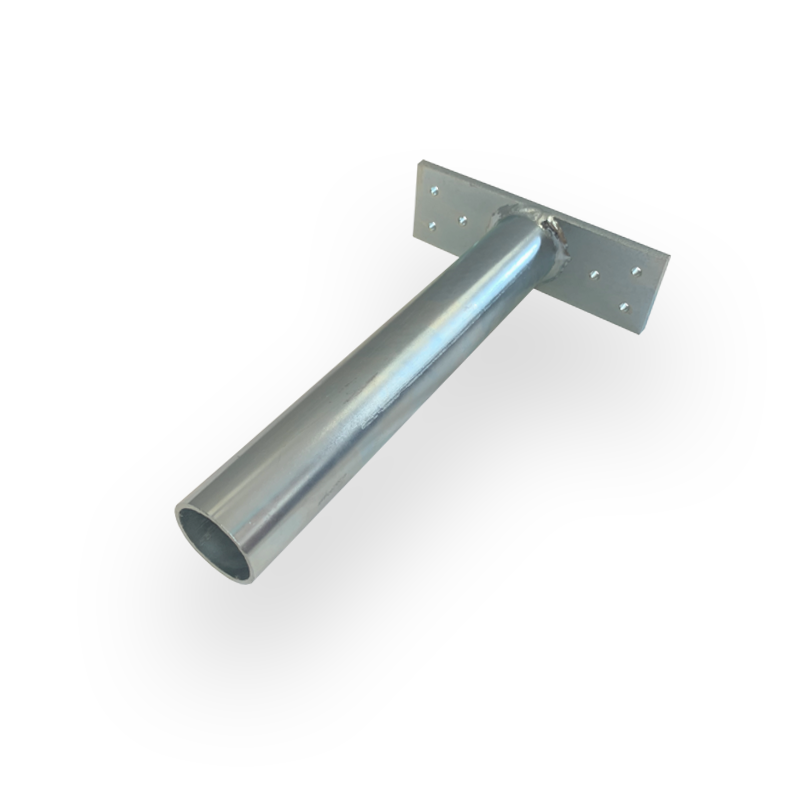

A “cast-off” or “t-off” bracket used for the construction of hand rails and/ or similar tube assembly. Comprises of a back plate drilled with six 6 mm holes and a single tube 300mm long welded to its face. This bracket is designed to be “stitched” directly into steel with the use of ADI “DS” self-drilling screws.
Load Capability
Please contact us for further information on Load Data (kN).
Horizontal Loads (bending moments)
Please contact us for further information on horizontal loads/bending moments (kN).
Quality Assurance
The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
