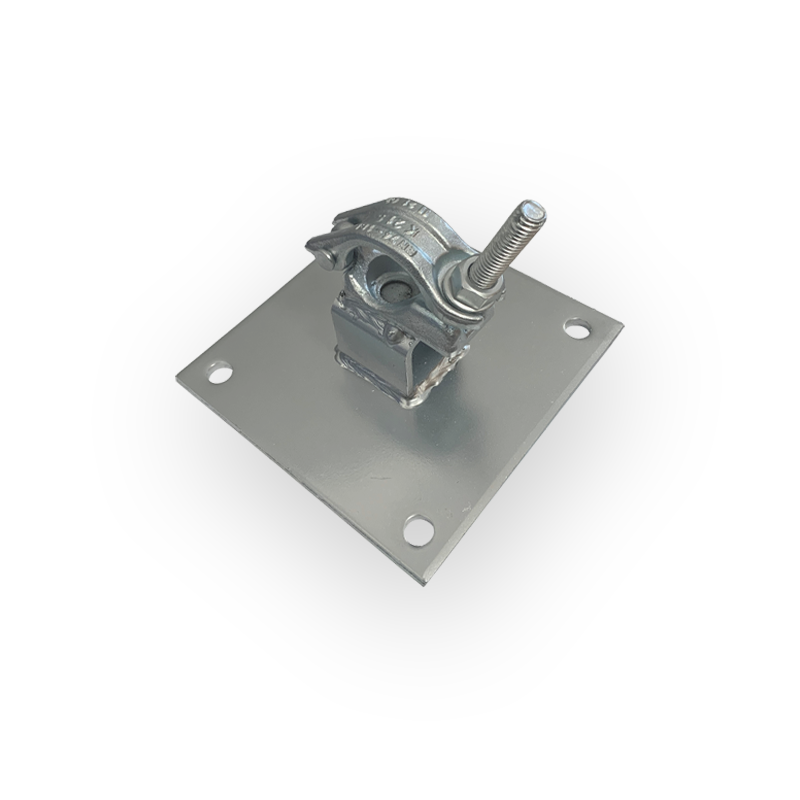

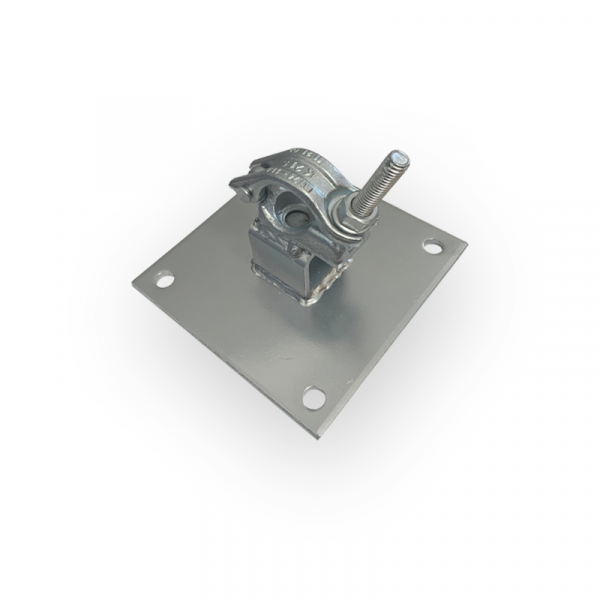

Shear Tie Plate 4 Hole – SCB16
£22.50 (Excluding VAT)
Product Designation :
SCB16 Shear Tie Plate
Type :
Scaffold Restraint Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Load Class (TG20) :
Medium to Heavy Duty
Technical Information
Medium to heavy duty scaffold restraint bracket used for raking or punching of scaffolding tubes off of a solid base material. It consists of a four-hole back plate 8mm thick, 50mm box section 5mm thick and a drop forged fitting. It has hole centres at 150mm designed to spread the load through the base material or across multiple brick courses.
Load Data
Please contact us for further information on maximum Tensile Load Data (kN).
Quality Assurance
The drop forged fitting has been manufactured and tested according to BS1139 – EN74. It has been accepted as Class A/B for behaviour under load. The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
You may also like…
-

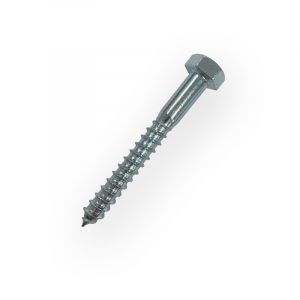

Hex Head Coach Screws (DIN 571) BZP – HHCSZ
£5.00 – £20.00 Select options This product has multiple variants. The options may be chosen on the product page -
ETA Approved Hex Head Concrete Screw Bolts – CSBCE
£38.00 – £99.00 Select options This product has multiple variants. The options may be chosen on the product page -

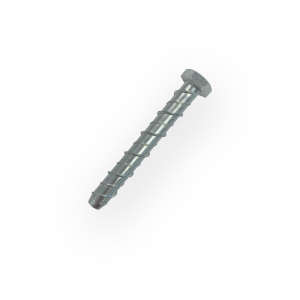

Hex Head Concrete Screw Bolts – CSB
