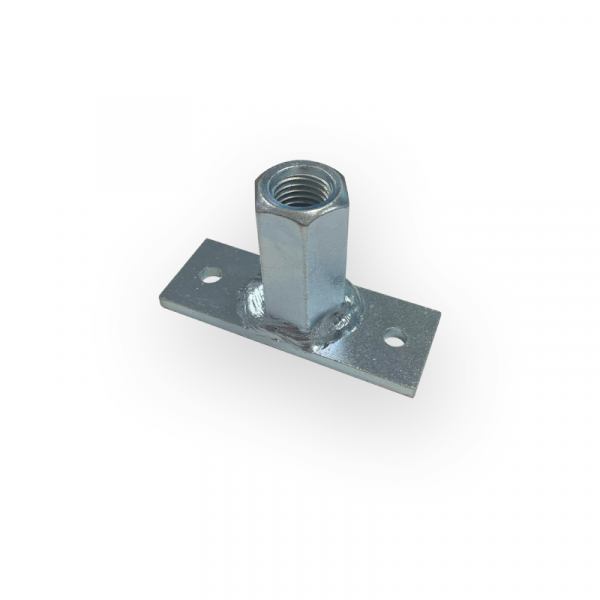

Purlin Rail “T” Cladding Bracket M16 – SCB04T
£3.80 (Excluding VAT)
Product Designation :
SCB04T Purlin Rail Cladding Bracket
Type :
M16 Scaffold Adaptor Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Load Class (TG20) :
Light to Standard Duty, depending on fixings & structure.
Technical Information
A steel bracket drilled with three 6mm holes, reduced in size & specially designed to fit between the profile of cladding faced buildings. Use DS screws to attach the bracket through the cladding sheet and pick up on the purlin rails behind.
Load Data
Please contact us for further information on maximum Tensile Load Data (kN).
Quality Assurance
The pressed steel fitting has been manufactured and tested according to BS1139 – EN74. It has been accepted as Class A for behaviour under load. The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
