M16 Scaffold Ring Bolt – SCR16
£4.50 (Excluding VAT)
Product Designation :
SCR
Type :
M16 Forged Ring Bolt
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 5~7 Microns)
Technical Information

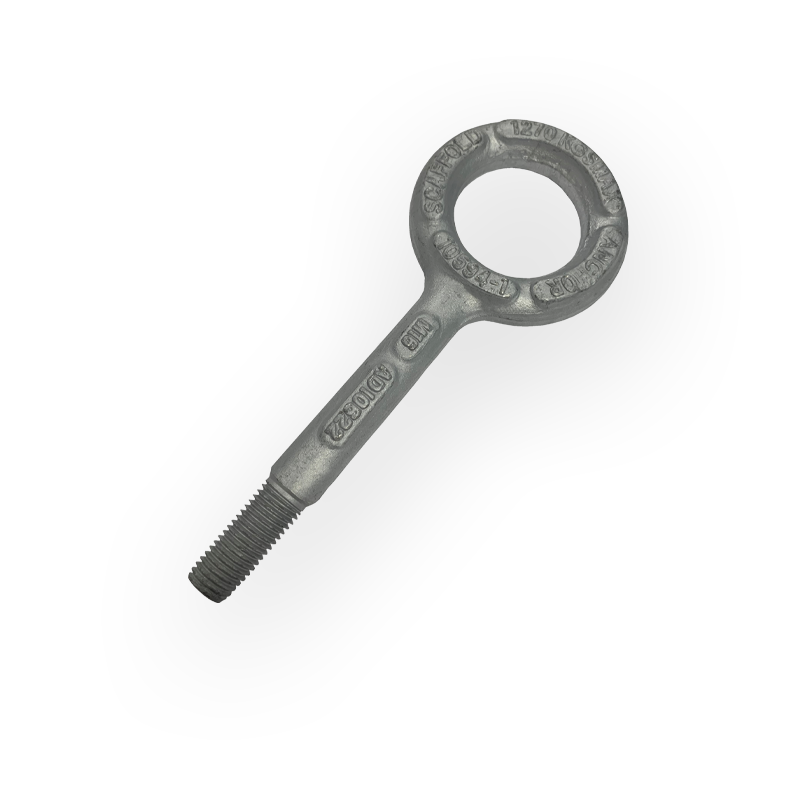

The M16 Forged Scaffold Ringbolt is still by far the most popular method of connecting scaffold tubes to concrete base material, although it is not always the most efficient and best way. The 54mm diameter internal eye accepts standard scaffold tubes & the M16 thread can be located into a threaded socket, either a “Hammer-set” deformation anchor or a “resin fixed” internal threaded sleeve. The forged ring bolt is stamped with an approved load for use up to 1270 kg and batch numbered.
Load Capability
Please contact us for further information on Load Data (kN).
Quality Assurance
The ringbolts are batch tested and MPI inspected for ultimate performance.
NB – Recommended loads are limited by suitability of base material and structure.
