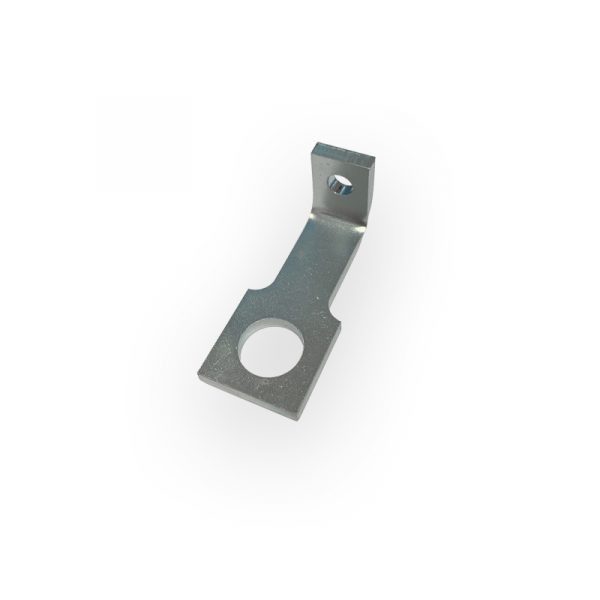

L Cladding Bracket For Hook (Narrow – 8mm) – SCB18T
£2.60 (Excluding VAT)
Product Designation :
SCB18T Cladding Brackets
Type :
Hook adaptor for connection to steel beam/sheet
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Load Class (TG20) :
Light to Medium Duty (depending on fixing type & structure).
Technical Information
The L Cladding Bracket is a bracket used for connections to steel beam or cladding sheets etc using “DS” Self Drilling Screws. This bracket can also be secured with rivets, rivet nuts, all-thread bars or bolts, nuts, washers etc, passed right through the structure etc. It can be used singularly or in pairs for increased load capacity. This bracket utilises an 8mm hole, which is designed to take DS screws etc, with a bigger diameter. This particular bracket is slightly longer and narrower that the SCB18/18A, specifically so it can easily locate within the groove of steel cladding/sheet.
Load Data
Please contact us for further information on maximum Tensile Load Data (kN).
NB – Recommended loads are limited by suitability of base material and structure.
