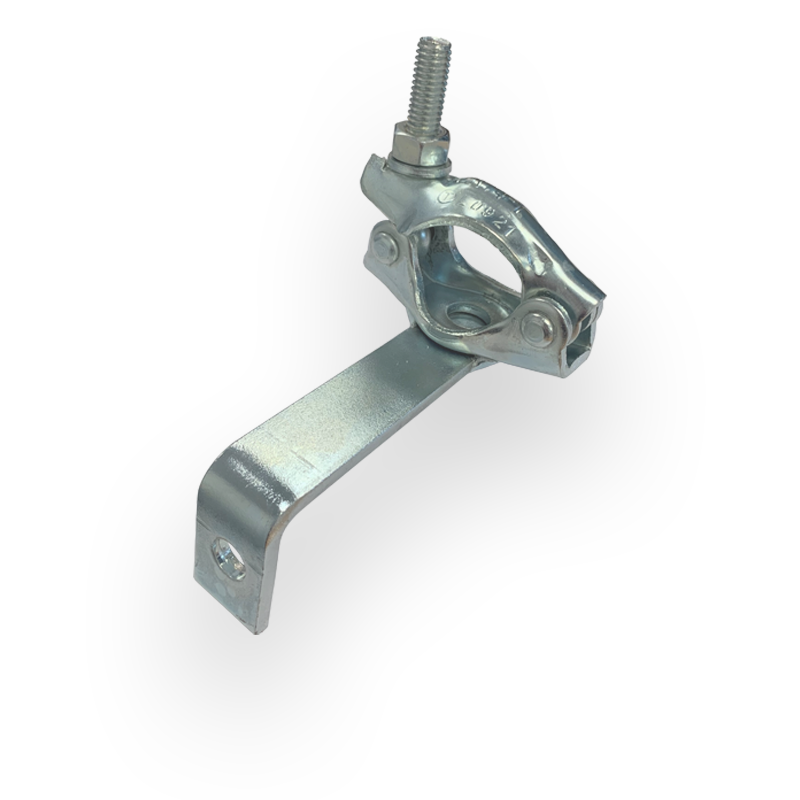

L Angle Tie Clip – SCB11
£6.30 (Excluding VAT)
Product Designation :
SCB11 Single Hole Tie Clip
Type :
Scaffold Restraint Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Load Class (TG20) :
Medium Duty 6.1kN
Technical Information
With the new NASC/ TG11 guidance note advising against the use of Drop In Anchors in any substrate except concrete – this fitting is a modern day solution. This fitting allows a connection to concrete or masonry in conjunction with a CSB Screw bolt or it can also be fixed to steel work with bolts & nuts or steel box frame fitting.
A very simple quick and economical fixing. It is ideal for irregular shaped buildings as the set-out pattern is not restricted.
Load Data
Please contact us for further information on maximum Load Data (kN).
Quality Assurance
The pressed steel fitting has been manufactured and tested according to BS1139 – EN74. It has been accepted as Class A for behaviour under load. The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
