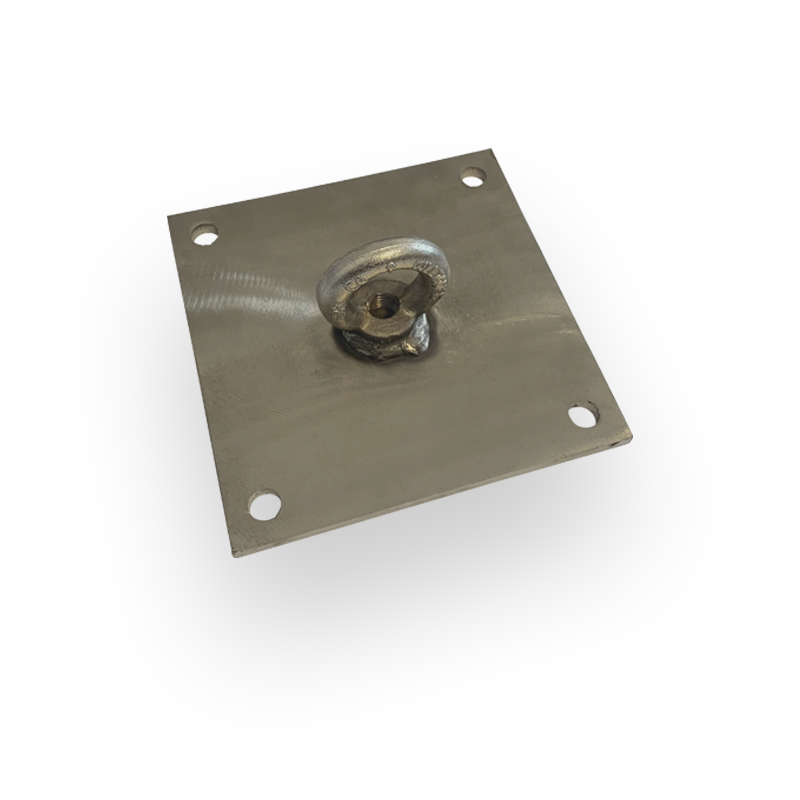

Eye Anchor Plate, 185mm SQ with Four 14mm Holes (Stainless Steel) – SDP1X
£80.00 (Excluding VAT)
Product Designation :
SDP1X
Type :
Eye Anchor Plate
Material :
Stainless Steel – A2-303
Load Class (TG20) :
Medium to Heavy Duty
Technical Information
A medium to heavy duty restraint bracket used for connecting catenary wire, tension wires and seasonal decorations to concrete, brick, blacks and timber.
It consists of a backplate 185mm square and 8mm thick, with 14mm holes in each corner at 150mm centres. The hole pattern is designed to spread the load through the base material or across multiple brick courses. It can be bolted using any standard fixing/fastener.
Load Data
Please contact us for further information on maximum Tensile Load Data (kN).
Quality Assurance
The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
