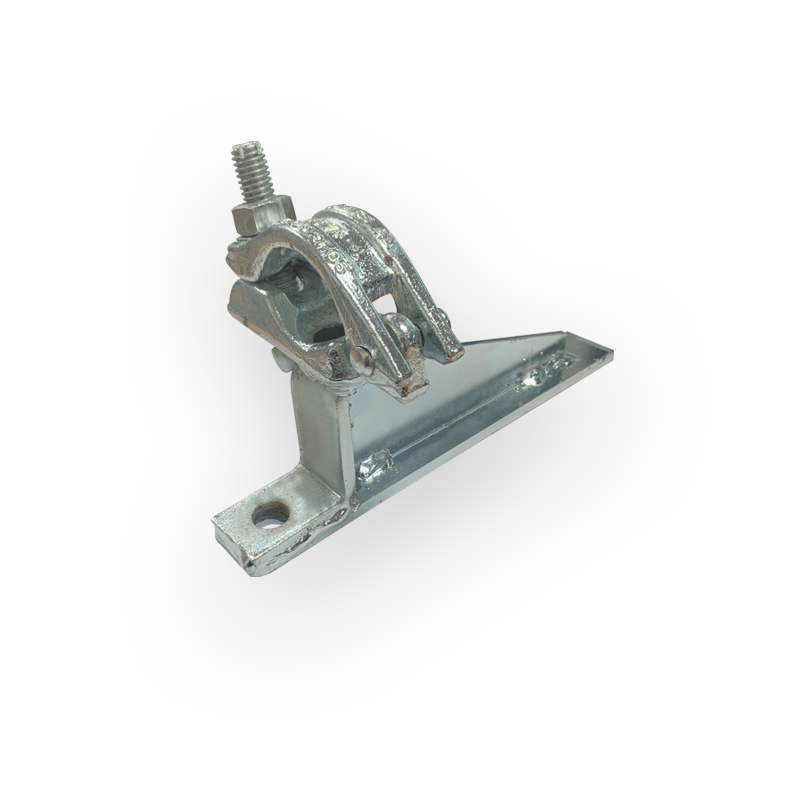

Single Fix Edge Bracket 80mm – SCB15
£18.00 (Excluding VAT)
Product Designation :
SCB15 Edge Protection Bracket
Type :
Scaffold Restraint Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Load Class (TG20) :
Medium to Heavy Duty
Technical Information
A medium to heavy duty scaffold restraint bracket used for punching of scaffolding tubes vertically off of a solid base material. Made from zinc plated mild steel and fitted with a drop forged fitting. It has a single hole diameter of 14mm and a leg length down the wall of 220mm, designed to spread the load through the base material or across multiple brick courses.
Distance is 90mm from the facing wall to tube face.
Load Data
Please contact us for further information on maximum Tensile Load Data (kN).
Quality Assurance
The drop forged fitting has been manufactured and tested according to BS1139 – EN74. It has been accepted as Class A/B for behaviour under load. The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
