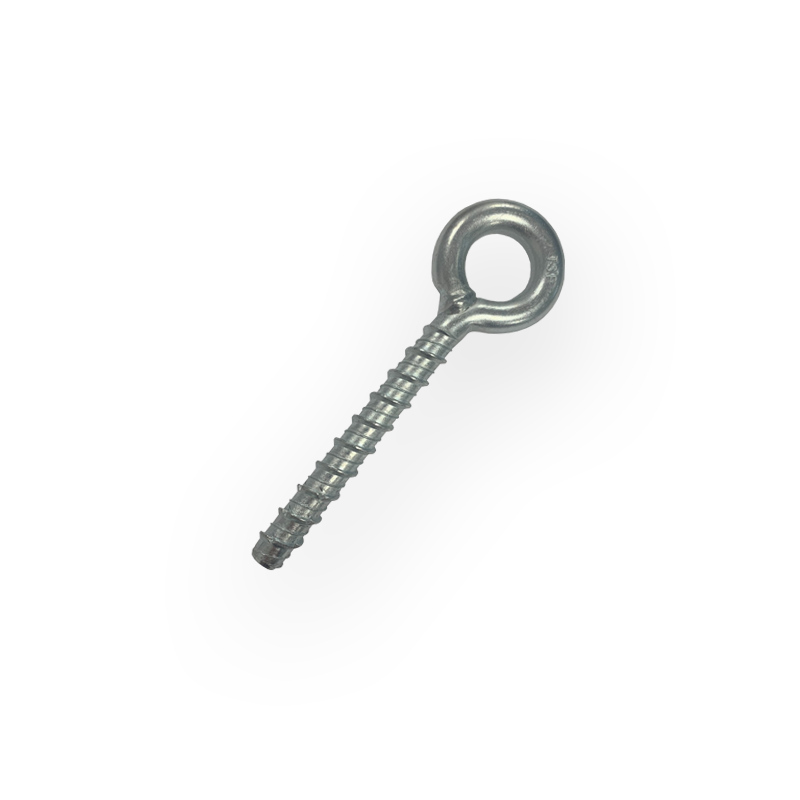

Box (25) 12×105 Small 23mm ID Eye Screw Bolt – EYB12105
£147.00 (Excluding VAT)
Product Designation :
EYB
Type :
CS Bolt – 23mm diameter EYE Version
Material :
Hardened Carbon Steel
Finish :
Bright Zinc Plated
Technical Information
Eye type CS Bolts are a single fixing solution for the majority of construction materials. They are very easy to install and have high pull out values. They can also be used close to an edge without breaking the substrate. Suitable for Brick, Wood, Marble, Block & Stone. This small eye type can be used with Scaffold Hook Couplers, Hook Tubes, Barrell Strainers, Catenary wire etc.
Load Capability
Please contact us for further information on Load Data (kN).
Quality Assurance
The EYB are batch tested and MPI inspected for ultimate performance.
NB – Recommended loads are limited by suitability of base material and structure.
