90 Degree Tube Extension 500mm – SCB30
£10.00 (Excluding VAT)
Product Designation :
SCB30 90 Degree Tube Extension
Type :
Scaffold Bracket
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Technical Information

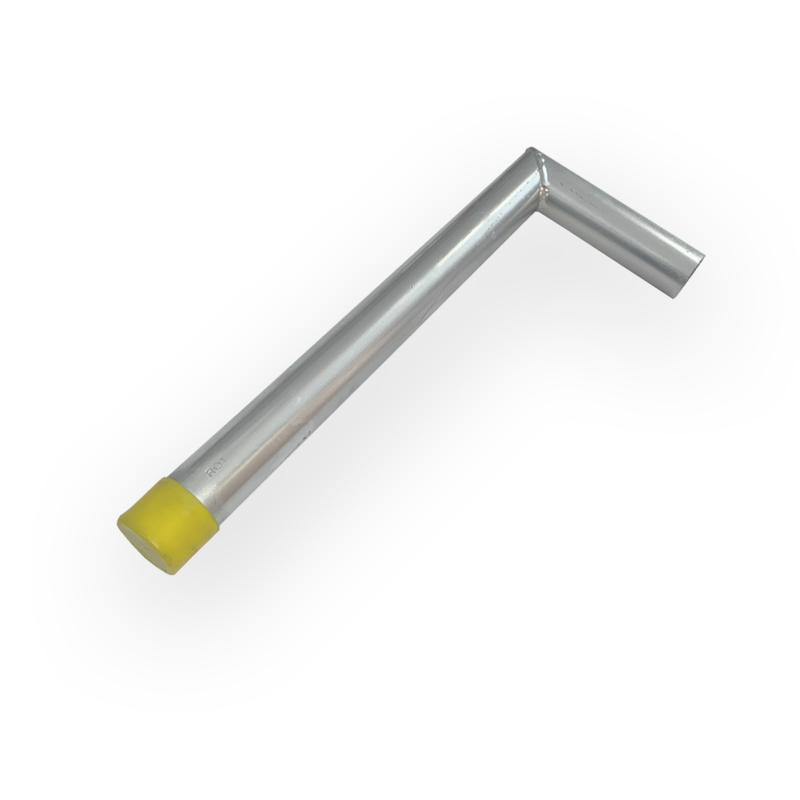

A Steel Zinc Plated scaffold tube 48mm in diameter and 470mm long welded with a right angle tube 170mm long. This product is designed for connecting scaffolding to an SCR ring bolt or similar size eye.
Load Capability
Please contact us for further information on Load Data (kN).
Quality Assurance
The brackets are batch tested and MPI inspected for ultimate performance. The weld strength has been tested in excess of 40kN.
NB – Recommended loads are limited by suitability of base material and structure.
