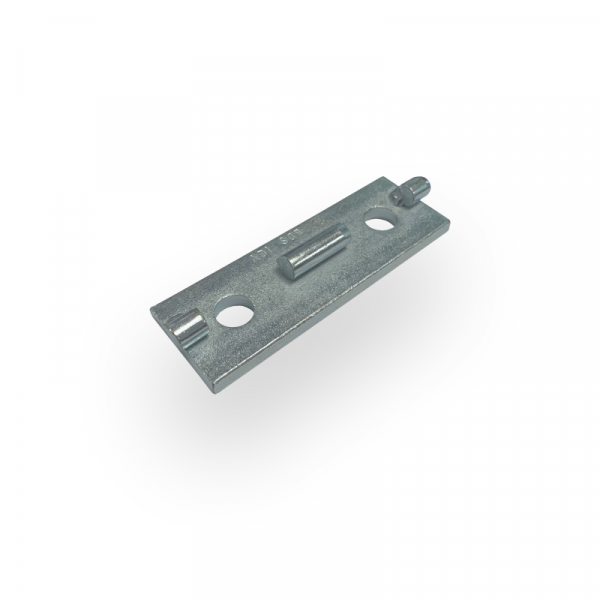

2 Hole Band Washer 15mm (CS BOLTS) – SCB12
£6.30 (Excluding VAT)
Product Designation :
SCB12 Band Washer (2 hole)
Type :
Washer
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Out of stock
Technical Information
Designed to take 2no. M12 CS Bolts, the washers act as load spreading devices. The band washers themselves do not receive any shear loads. As the shear load is applied to the band it creates a rotational force through the heel of the bracket. This in turn creates a tensile “pull-out” action on the top fixing and creates compression on the bottom fixing. The band washer itself only receives tensile load actions, between the head of the bolt and the curve of the plate. All shear forces are transferred directly by the band pressing down on the shank of the anchor bolt.
Quality Assurance
The washers are batch tested and MPI inspected for ultimate performance.
NB – Recommended loads are limited by suitability of base material and structure.
