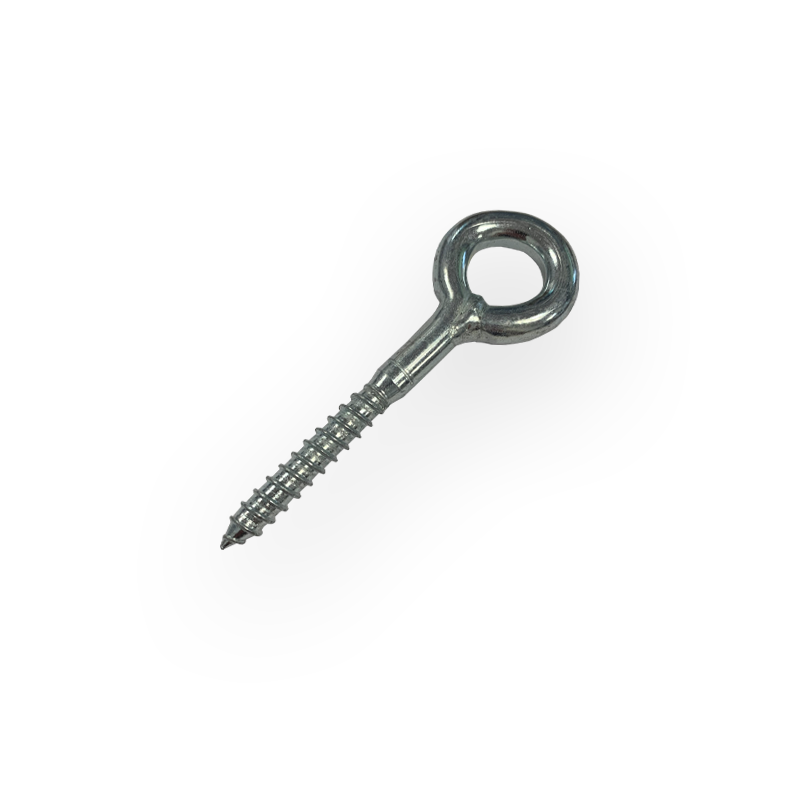

BOX(25) 12X90 Restraint Eye 23mm ID – SCE12090

Technical Information
A light to standard duty through fixing used predominately in the Scaffold & Access market to secure scaffolding, cables, chains, ladders etc. Can be used in conjunction with a variety of 14mm nylon plugs for applications in concrete, solid bricks, hollow bricks, perforated bricks, aircrete, blocks etc. and timber (without plugs).

Dimensions
Gauge – M12
Shank & Thread Length (combined) – 90mm
Eye ID – 23mm
Thread Length Only – 65mm

Load Data
Please contact us for further information on maximum Tensile Load Data (kN).

Installation Instructions
In masonry, drill hole to the correct diameter and depth to suit the nylon plug you are using.  To achieve maximum load bearing capacity, the nylon fixing can only be used once and the screw must be set to the correct installation depth, according to the markings on the shaft of the screw. In timber applications, we recommend an 8mm pilot hole be drilled to aid insertion and avoid splitting.

NB – Recommended loads are limited by suitability of base material and structure.
