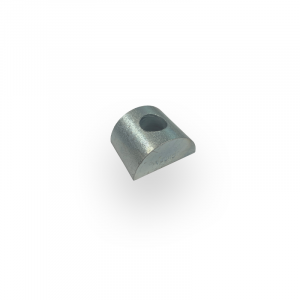

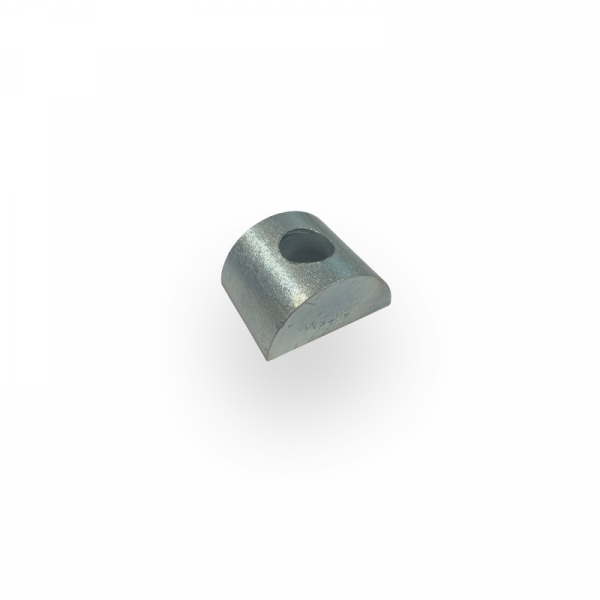

1 Hole Band Washer for M16 Thread – SCB06A
£6.20 (Excluding VAT)
Product Designation :
SCB06A Band Washer
Type :
Washer
Material :
Mild Steel
Finish :
Bright Zinc Plated (thickness 3~5 Microns)
Out of stock
Technical Information
Designed to take M16 thread, the washers act as load spreading devices. The band washers themselves do not receive any shear loads. As the shear load is applied to the band it creates a rotational force through the heel of the bracket. This in turn creates a tensile “pull-out” action on the top fixing and creates compression on the bottom fixing. The band washer itself only receives tensile load actions, between the head of the bolt and the curve of the plate. All shear forces are transferred directly by the band pressing down on the shank of the anchor bolt.
Quality Assurance
The washers are batch tested and MPI inspected for ultimate performance.
NB – Recommended loads are limited by suitability of base material and structure.
You may also like…
-
Hex Head Coach Screws (DIN 571) BZP – HHCSZ
£5.00 – £20.00 Select options This product has multiple variants. The options may be chosen on the product page -

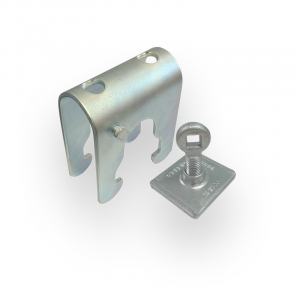

Band And Plate (2 Hole) – SCB19
